The VizioGuard offers numerous application possibilities for control, management and monitoring of any environmental condition. The configuration of up to 255 peripheral devices or up to 32 sensors is flexible and comfortable possible via the integrated webserver.

The connection terminal with dry contacts allows connecting, cascading and monitoring of up to 128 peripherals. The VizioGuard can be used in large IT infrastructures without restrictions due to its high modularity and with the compact dimensions and the attractive pricing it offers a real alternative compared to integrated systems (like a DMZ or server rooms) from respective providers.

The VizioGuard is supplied with the dual rack mount. The mounting in 19″ rack is guaranteed. Using the secondary slot a digital input module may be placed which provides further connectivities.

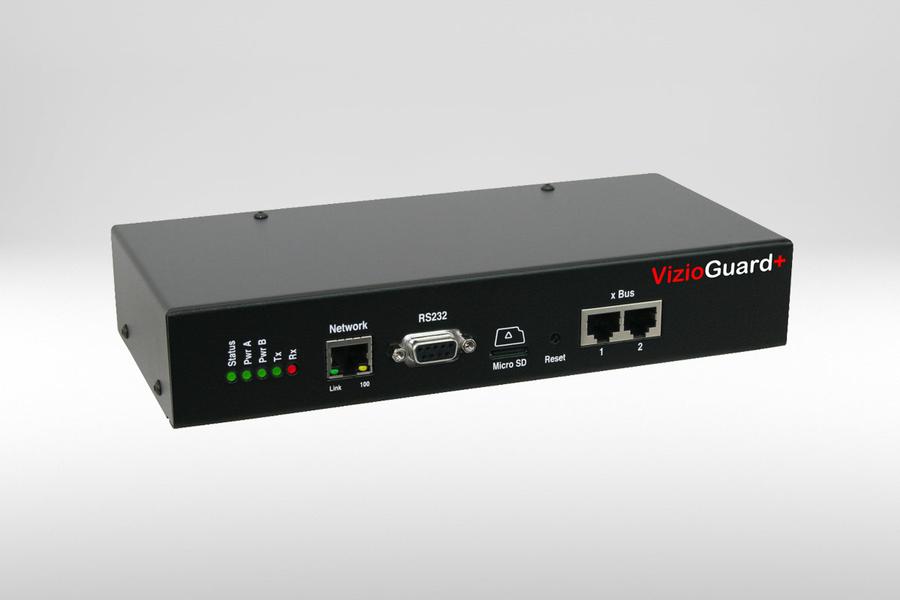

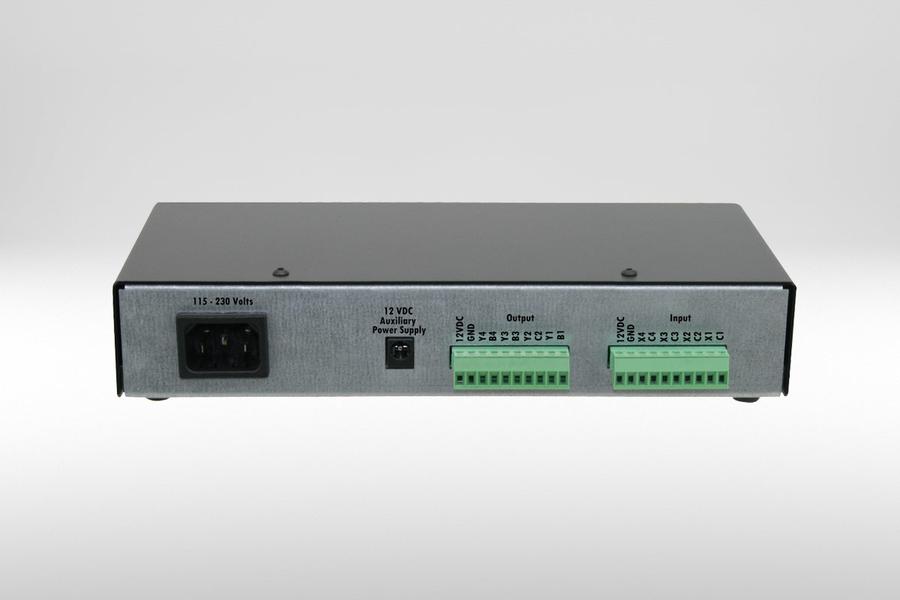

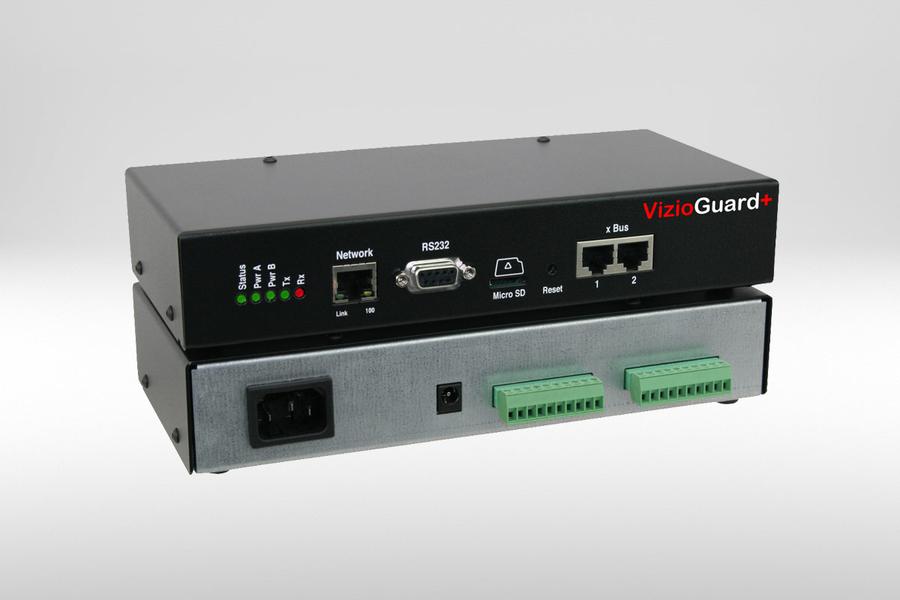

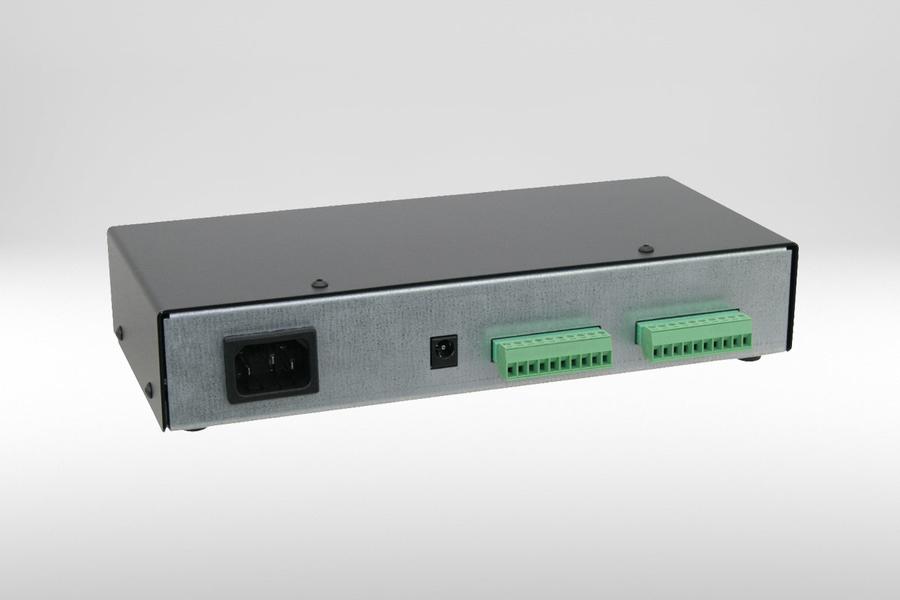

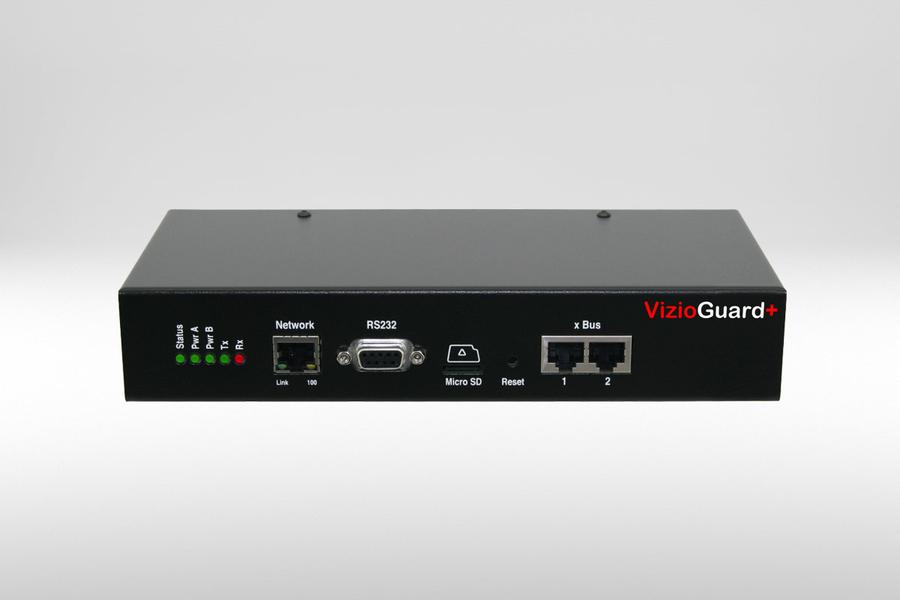

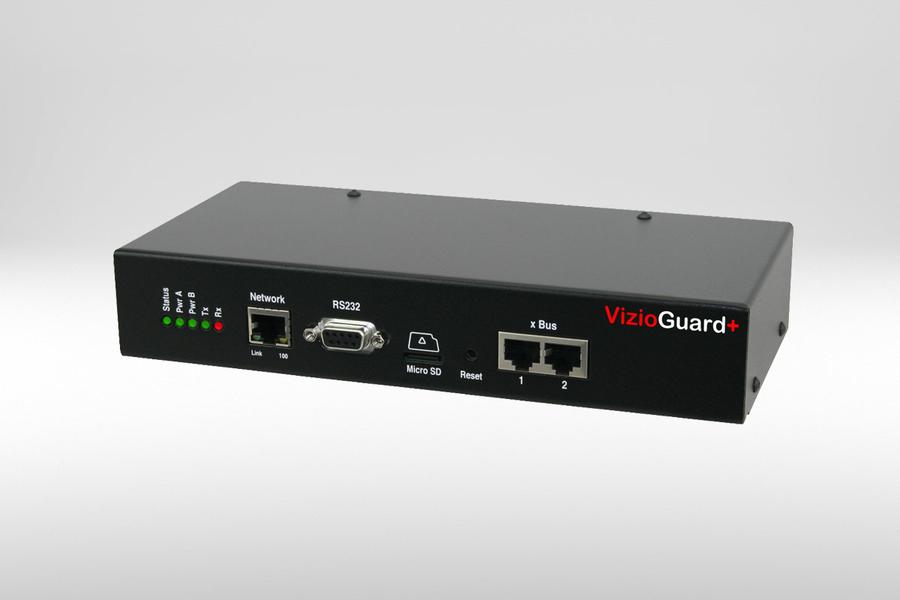

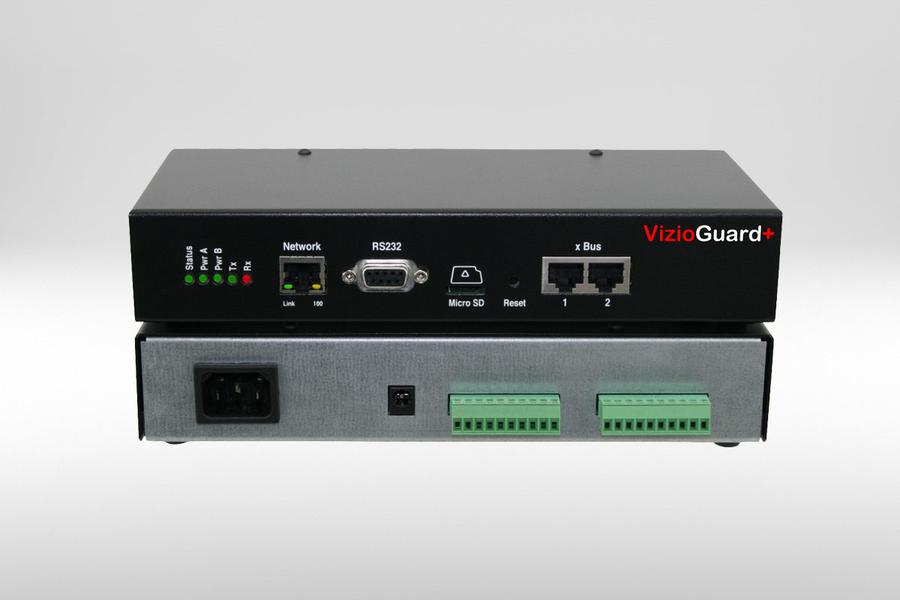

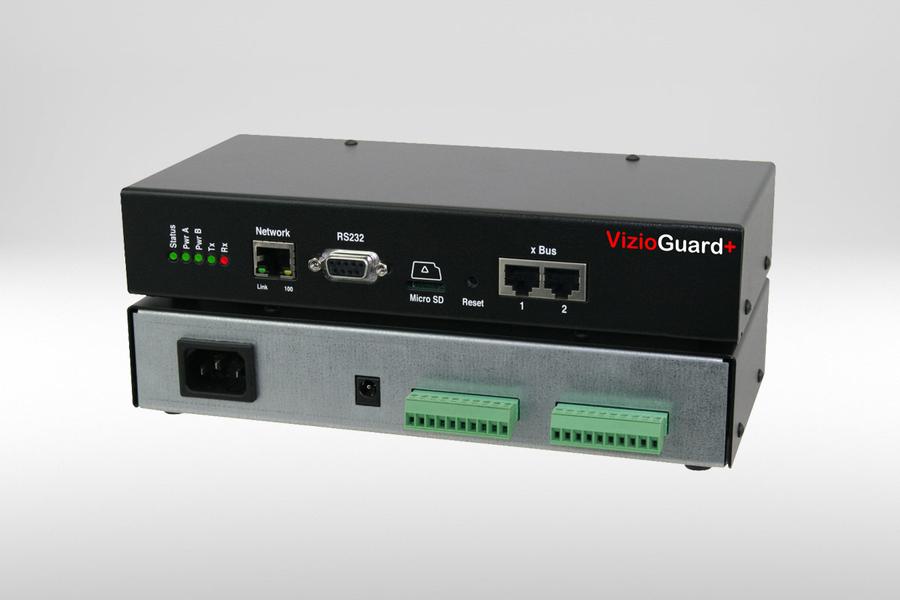

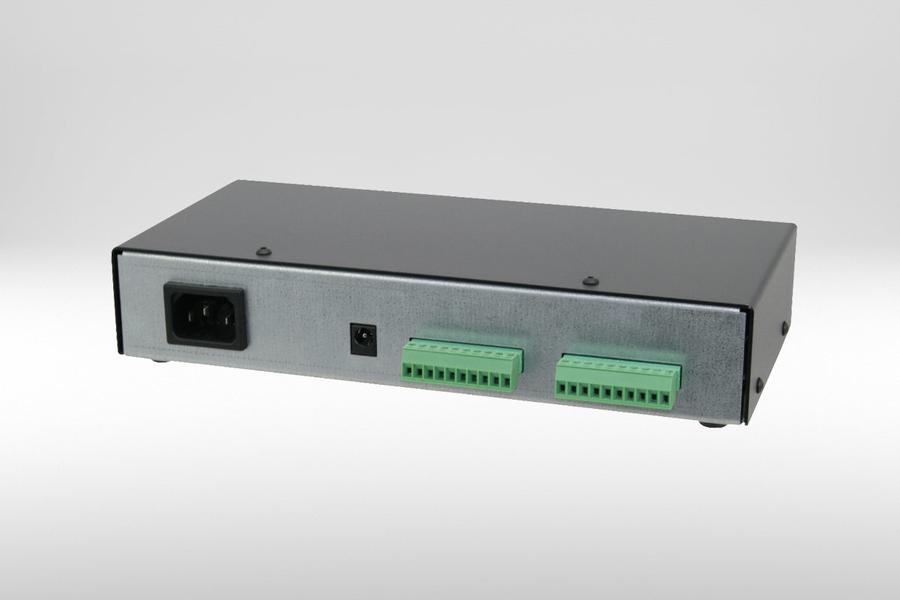

Rear connection features Front connection features
  • 1 IEC320 power input
  • Optional redundant power supply
  • Dry contacts via connection terminal
  • 2 xBus connections
  • Status-LED for all ports
  • RJ45 network connection
  • RS232 connection
  • xBus connection
  • MicroSD slot
  • Reset switch

Power Distribution

As a pure environment monitoring system, the VizioGuard offers no direct power distribution. Using the xBus-port the connection to an ePowerSwitch is ensured and the appropriate sensors (voltage tester, power tester) guarantee a direct control of connected device.

In order to ensure a high level of reliability the VizioGuard has a redundant power supply. Some peripherals may also be protected in this way.


Device Monitoring
The monitoring of connected devices is done with a ping or scan command. In case of a crash a message as an SNMP trap, by eMail or Syslog will be sent. The monitored devices (up to 128) can be restarted based on defined rules.

Flexible and economical solutions for power management of servers or other devices are possible with the VizioGuard. The areas of application are not limited only to the IT environment.

Environmental Monitoring
With the xBus interface on the rear side of the device up to 132 sensors or detectors can be connected by standard CAT cable. The transmission of signals is fully digital and the maximum range is up to 200m. The use of an existing cable infrastructure is easily assured. The inputs can be used in definable rules to trigger automatically any appropriate emergency actions.

Sensors and detectors can be flexibly combined and placed at any desired location in the surveillance area. For example, the optimization of a larger demilitarized zone (eg. hotspots in the air-conditioned area) is possible with only a little effort.

Connection Terminal
8 digital inputs are available through the dry contacts of the connection terminal. As example, smoke, water or motion detectors are connectable, that can be monitored and evaluated in full.


The management and control of the device using the integrated web server through the web browser is quite simple. Moreover, it is possible to send switching commands via a connected KVM switch or a terminal console.

All current ePowerSwitch devices use a nonce (cryptographic nonce) and a hash function for authentication so the access cannot be reconstructed or manipulated. To support fully encrypted transmission of data corresponding devices are available (eg. ePowerSwitch 8XM+/32 or VizioGuard).

User accounts
The administrator can create up to 40 user accounts with different rights via the web interface. Access to the webserver is protected by 32-character user names and passwords. In addition, up to 40 users may simultaneously access the ePowerSwitch and all connected xBus peripherals.

Grouping of sensors
The grouping of sensors and modules allows to define various monitoring areas. Sensors, detectors and modules within a certain area are grouped together this way. Structural separations or anything else related to the infrastructure can be decidedly mapped and monitored this way.

Programmable rules
Up to 32 rules can be configured to monitor analog values and digital inputs. Pre-programmed actions will be triggered on alarm state which will switch eg. relay or sockets. Optional e-mails, SNMP traps or syslog messages can be sent.

Timer and scheduler
The device offers the possibility to automatically operate the power outlets by a timer and/or a scheduler function. Individual power outlets but also groups will be turned on/off at defined times. It is also possible to automatically send an e-mail, SNMP traps and syslog messages with the scheduler. By using an internet connection the option to trigger an action on remote ePowerSwitch devices is given.

Up to 32 characters long names can be set to all devices and sensors connected. This unique identification simplifies the programming of rules, groups and the associated actions.

Online help
An intuitive interface and context-sensitive online help allow administrators to quickly enable various and powerful features of the system. Detailed instructions and explanations are listed in the operating instructions.


  • Guarded system (SSL 128 bits , RSA 1024 – bits)
  • Modular and flexible system with many expansion options
  • Monitoring of 32 sensors (temperature, humidity, environment and brightness) or detectors (smoke, motion , liquid)
  • Monitoring of 16 current sensors
  • Monitoring of 16 digital input modules: DIM module (128 dry contacts for door contacts), environmental sensors (to report an attendance) or push buttons
  • Monitoring of 16 DOM modules (128 dry contact outputs)
  • Task planning for the triggering of programmed actions (control socket, sending e-mail, syslog messages and SNMP traps)
  • Remote control of 16 power distribution units (ePowerSwitch Satellite 1 or 8 ports)
  • Autonomous system clock with NTP synchronization for dated email, syslog messages, logs and SNMP traps
  • Redundant power supply
  • Compact metal housing with included 19″ mounting kit and wall mounting kit
  • Fast and easy installation/configuration through a webrowser
  • Integrated online help
Technical data
Power Input 1 x 100-240 VAC / 50 Hz
1 x 12VDC / 1A*
* needs optional power adapter
Connection Terminal 8 digital inputs for dry contacts
Network Standards IEEE 802.3, 10/100 Mbit/s
Network Protocols TCP/IP, HTTP, HTTPS, DHCP, SNMP, SMTP, SNTP, Syslog
SSL Technology Version 2 and 3
Ethernet Connection RJ45
Max. Network Cable Length 100 m
Terminal Connection RS232, SUB-D 9 female
xBUS Connection Dual RJ45
External Log File Storage Micro SD Card
Hardware Reset Reset button on the Front Side
LED Power A and B, Network, Status, xBus Activity
Operating Temperature 0°C to +50°C
Operating Humidity 10% to 80%
Dimensions (W x H x D) 230 x 42 x 123
Weight 0.9 kg
Approvals CE, ROHS, EN60950, EN55022, EN55024, EN50581
Guarantee 2 years repair/replace

Product inquiry


The VizioGuard+ is a high-performance system in the field of environmental monitoring. Numerous connection and cascading options offer almost unlimited use areas with the configuration in the web browser (HTTPS). Up to 32 analog sensors or 16 ePowerSwitch devices can be connected directly to the VizioGuard.

  • 16 ePowerSwitch devices
  • 32 analog sensors
  • Flexible cascadable
  • HTTPS protocol
  • Power supply monitoring
