The combination of temperature and brightness sensor allows to trigger combined actions or to send alarm messages. State values can be transmitted by various protocols (syslog, SNMP traps, emails). This way a control of the environmental conditions is possible at any time.
The xBus interface can be cascaded to any point on the network using a standard network cable. Connecting other xBus peripheries is possible over the two RJ45 ports on the front.
Temperature: -25°C to +60°C
Accuracy: +/- 0.5 ° C (typ) to +25 ° C | +/- 1°C (maximum) from -10°C to +60°C.
No external power supply
Up to 4 sensors can be connected directly in series with an ePowerSwitch Master or a VidioGuard . More sensors can be attached through the xBus Extender.
The installation and setup of the xBus module is very simple and requires no additional calibration. Using a mounting bracket, the installation at almost any location is possible.
A user-defined name (up to 32 characters) can be assigned to each xBus module using an ePowerSwitch or a VizioGuard. Each sensor is uniquely identifiable this way.
The analog measured values can be displayed in a diagram and the time interval between two measurements is set flexible.
The sensor with its digital xBus interface is designed for easy and fast installation in a 19″ rack. The mounting angle is rotatable by 90 degrees to ensure flexibility in mounting the device.
- Environmental Monitoring1.02 MB

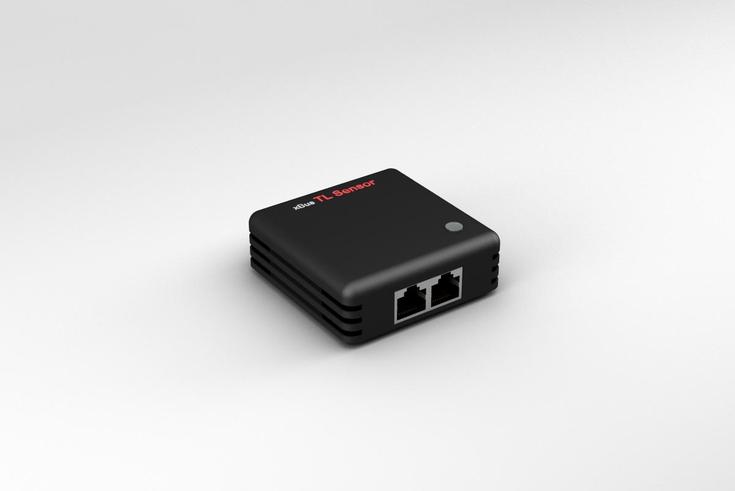

Temperature & Brightness Sensor
The temperature and brightness sensor may be connected to any ePowerSwitch Master or VizioGuard. It monitors the temperature and in addition the ambient light/brightness.
- Cascadable up to 200 meter
- Digital transmission
- Incl. mounting plate for 19"
- No external power supply
- Standard RJ45 cable
