Temperature & Proximity

Description

Environmental Monitoring
The combination of temperature nad infrared proximity sensor allows to trigger combined actions or to send alarm messages. State values ​​can be transmitted by various protocols (syslog, SNMP traps, emails). This way a control of the environmental conditions is possible at any time.

Cascadable
The xBus interface can be cascaded to any point on the network using a standard network cable. Connecting other xBus peripheries is possible over the two RJ45 ports on the front.

Measuring range
Temperature: -25°C to +60°C
Accuracy: +/- 0.5 ° C (typ) to +25 ° C | +/- 1°C (maximum) from -10°C to +60°C.

IR proximity sensor
Active infrared, range 0-40 cm

No external power supply
Up to 4 sensors can be connected directly in series with a ePowerSwitch Master or a VidioGuard . More sensors can be attached through the xBus Extender.

Easy installation
The installation and setup of the xBus module is very simple and requires no additional calibration. Using a mounting bracket the installation at almost any location is possible.

Assigning names
A user-defined name (up to 32 characters) can be assigned to each xBus module using a ePowerSwitch or the VizioGuard. Each sensor is uniquely identifiable this way.

Graph
The analog measured values ​​can be displayed in a diagram and the time interval between two measurements is set flexible.

Mounting
The sensor with its digital xBus interface is designed for easy and fast installation in a 19″ rack. The mounting angle is rotatable by 90 degrees to ensure flexibility in mounting the device.

Product inquiry

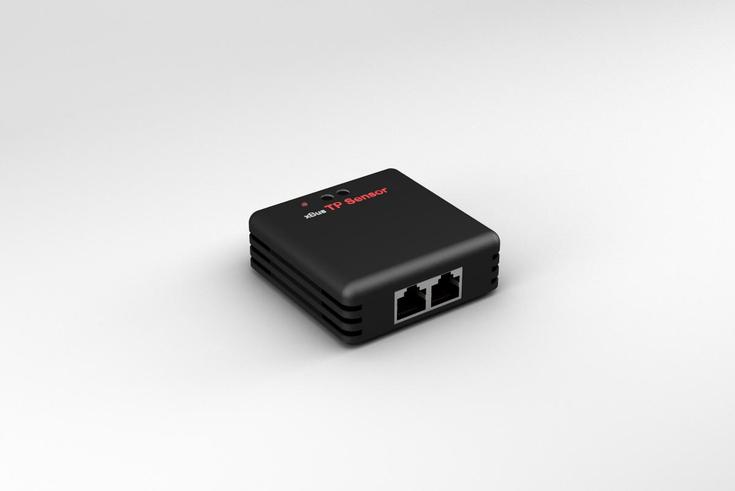

Temperature & Proximity Sensor

The smart temperature and infrared proximity sensor can be connected to any ePowerSwitch Master or VizioGuard. It automatically detects even the slightest movements via the built-in infrared sensor.

  • Cascadable up to 200 meter
  • Digital transmission
  • Incl. mounting plate for 19"
  • Infrared
  • No external power supply
  • Standard RJ45 cable
