Temperature & Humidity

Description

Environmental Monitoring
The combination of temperature and humidity sensor allows to trigger combined actions or to send alarm messages. State values ​​can be transmitted by various protocols (syslog, SNMP traps, emails). This way a control of the environmental conditions is possible at any time.

Cascadable
The xBus interface can be cascaded to any point on the network using a standard network cable. Connecting other xBus peripheries is possible over the two RJ45 ports on the front.

Measuring range
Temperature: -25°C to +60°C
Accuracy: +/- 0.5 ° C (typ) to +25 ° C | +/- 1°C (maximum) from -10°C to +60°C.
Humidity: 0% to 100%, +/-3% tolerance

No external power supply
Up to 4 sensors can be connected directly in series with an ePowerSwitch Master or a VidioGuard. More sensors can be attached through the xBus Extender.

Easy installation
The installation and setup of the xBus module is very simple and requires no additional calibration. Using a mounting bracket, the installation at almost any location is possible.

Assigning names
A user-defined name (up to 32 characters) can be assigned to each xBus module using an ePowerSwitch or a VizioGuard. Each sensor is uniquely identifiable this way.

Graph
The analog measured values ​​can be displayed in a diagram and the time interval between two measurements is set flexible.

Mounting
The sensor with its digital xBus interface is designed for easy and fast installation in a 19″ rack. The mounting angle is rotatable by 90 degrees to ensure flexibility in mounting the device.

Product inquiry

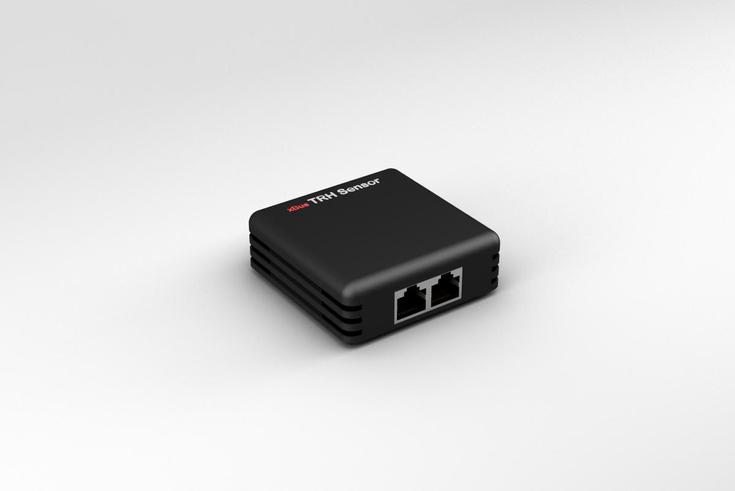

Temperature & Humidity Sensor

The temperature sensor offers the additional possibility to monitor humidity. In this combination it is a simple environmental control system which can be combined with any ePowerSwitch Master or a VizioGuard.

  • Cascadable up to 200 meter
  • Digital transmission
  • Incl. mounting plate for 19"
  • No external power supply
  • Standard RJ45 cable
