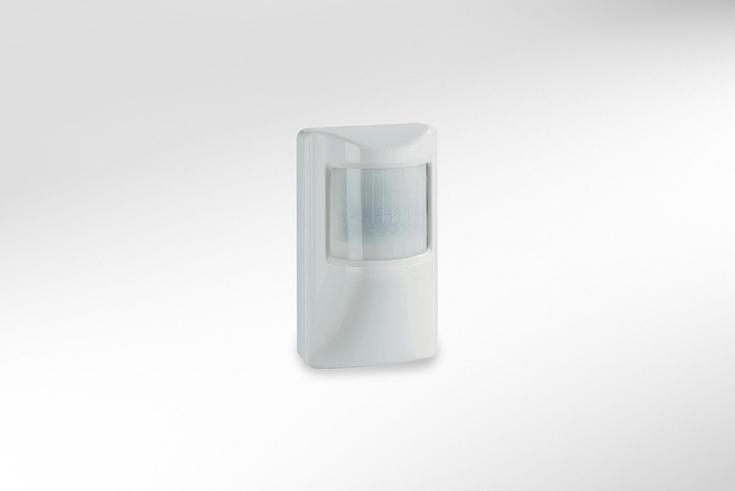

Infrared Motion Detector

Description

Instant connection
The motion detector is optionally supplied with a digital input module. A faster and easier connection to a ePowerSwitch master is possible this way. The motion detector can be connected directly to a VizioGuard. For optimum protection of the rooms a placement at sensitive locations is sufficient.

Reliable detection
Due to its microprocessor and dual sensor this motion detector is amazing reliable and safe to operate with a detection angle of 85° and a range of up to 12 meters.

Benefits

  • Motion detector with dual sensors for maximum security
  • Requires no separate power supply
  • 3m four-wire cable included
  • Tamper switch
  • Relay output
  • Message display (LED) can be deactivated
  • Adjustable sensitivity
  • Test function
  • Power consumption (sleep / alarm ): 15 mA.
  • Switching current: 100mA
  • Power supply voltage: 12VDC.
  • Contact: Alarm contact NC/NO, 24VDC, 100mA
  • Coverage angle: 85°
  • Width: 60mm

Product inquiry

Infrared Motion Detector

The motion detector has 2 digital outputs (alarm and tamper) and can be directly connected to a VizioGuard (optionally via the digital input module to a ePowerSwitch Master). The power is supplied via the dry contact terminal.

  • 2 digital contacts
  • Sabotage monitoring
  • Sabotage output (TMP)
